Rausch Premium

Brand:

Brand Logo: Rausch USA

Request Information

Application Range from 4″ up to 120″ Pipe Diameter

The Rausch Premium enables transmission in Full HD with a resolution of 1920×1080 pixels using copper cables instead of optical fibers. This is possible due to specially developed and patented VML technology. The result: improved quality of the inspection data and reduced running cost based on simplified services requirements.

Request Information

Additional Details

TECHNOLOGY IN THE STUDIO

TECHNOLOGY IN THE STUDIO

  • Digital CCTV technology in Full HD quality 1920 x 1080 pixel or MPEG4 with 720 x 576 pixel
  • Ergonomic operating concept with electrically adjustable desk a for fatigue free working environment
  • System control with industrial PC including a 15“ touch screen and two multifunctional joysticks to control the camera and crawler
  • User adjustable surface and joystick control
  • Digital overlay technology to display readings and data in various country versions
  • Display technology and adjustable text size and color
  • 22“CCTV monitor in Full HD
  • Serial bus system for the control of cable drums, crawlers, cameras and the Full HD Satellite System
  • Ethernet connection for video and data exchange including a documentation PC and software
  • Alternative recording in MPEG4 format is possible in case Full HD data quantities cannot be processed

SYSTEM HIGHLIGHTS/OPTIONS

SYSTEM HIGHLIGHTS

  • Rear area fittings with passage way to the studio
  • Cable drum ELKA 600 HD including observation monitor, telescopic swivel arm and chain winch, cable length up to 1,640 ft
  • Cable drum Quadtro SAT HD, cable length 525 ft, push cable 130ft
  • Satellite system for the inspection of laterals in Full HD

OPTIONS

  • Deformation measuring
  • Software for laser-guided defect measurement
  • LATRAS for lateral tracking
  • Satellite system for the inspection of laterals
  • Pressure tests for leak testing of joints, pipe sections, branches and laterals
  • For pipes up to 120 inches in connection with the crawler C 135 and height extension or on a float
  • Air conditioning (roof top) with generator application
  • Rear canopy
  • Additional safety lighting
  • Additional rear 19” monitor
  • Bathroom
  • Sink
  • UV Sanitation light
  • Solar power

REAR AREA

REAR AREA

  • Signature spray on flooring
  • Expansion with high-quality aluminum profiles and drawers for crawlers and accessories
  • Integrated LED lights
  • Fully automatic cable drum Elka 600 with integrated 8″ LCD monitor
  • Telescopic swivel arm with chain hoist and LED work light
  • Satellite cable drum Quadtro SAT
  • Pressure monitoring system Premus 600
  • 15 Gallon Standard Washdown System

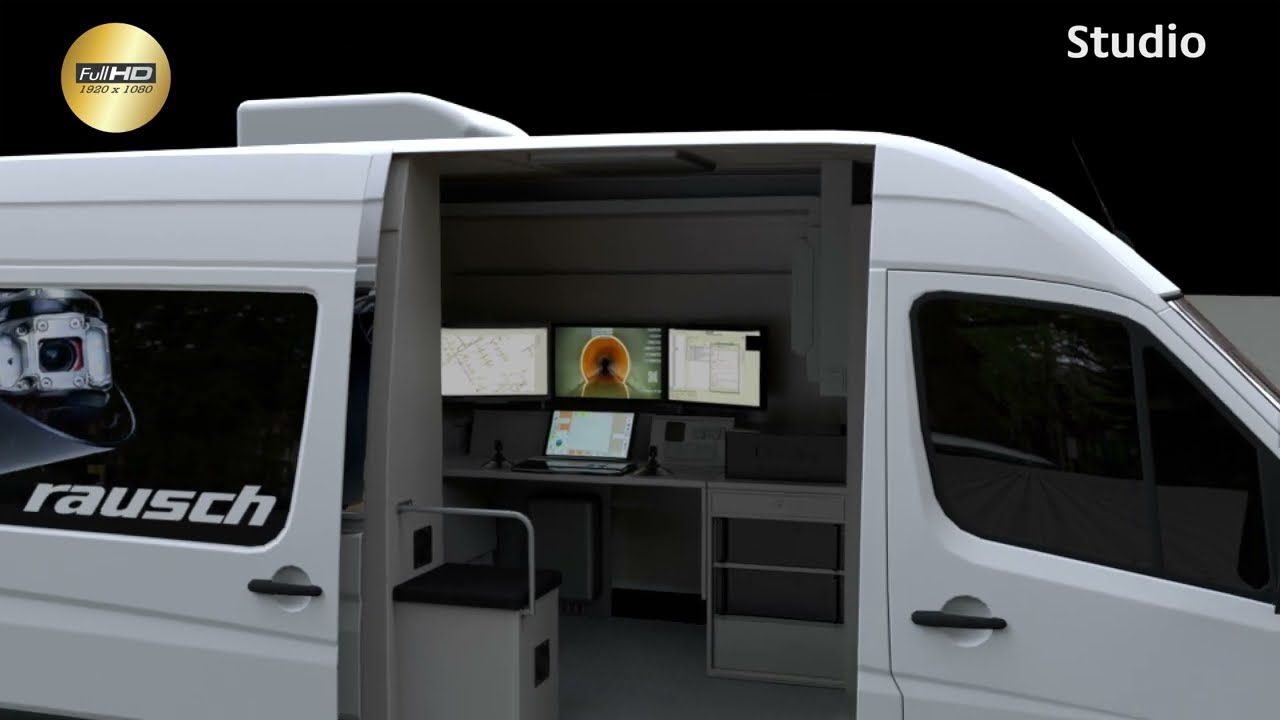

Product Video

youtube-video-thumbnail

From Our Customers

"Jet Line Sales & Service offers the best equipment at competitive prices, coupled with excellent service on the products they sell. I bought the Rausch Push Camera System for inspecting drain tile, along with the locator. This system has saved countless hours solving many drainage issues. I have owned it for a year and it has already paid for itself in time and materials saved."

Dave S.
