Van Pack Jetter

Brand:

Brand Logo: Harben

4018 VPK Van Pack Jetter

  • 4000 psi /18 gpm
  • Easy installation
  • Proven Harben® build quality
  • Kubota low emission diesel engine
  • Hydraulic hose reel with feed guide
  • Cleans drains up to 18″ diameter
  • Anti-freeze recirculation system
Harben › Sewer Jetters › 4018 VPK Van Pack

Harben Van Pack Jetter

4018 VPK Van Pack4,000 PSI that rides in your van

A full sewer jetter that bolts into a cargo van or box truck. 4,000 PSI at 18 GPM, 500 feet of hose on a hydraulic reel and the run-dry Harben pump, in a frame only 80″ long.

✓ Minnesota State Contract✓ Run-dry P-Type pump✓ Demo at your shop
4,000 PSIAt 18 GPM
500 FT1/2″ hose
100 GALWater (more optional)
UP TO 18″Drain size
Why a Van Pack

Jet from the van, not a trailer

No trailer to hitch, park or back up. The van pack lives inside your van with your tools, ready to go in winter with its anti-freeze recirculation system.

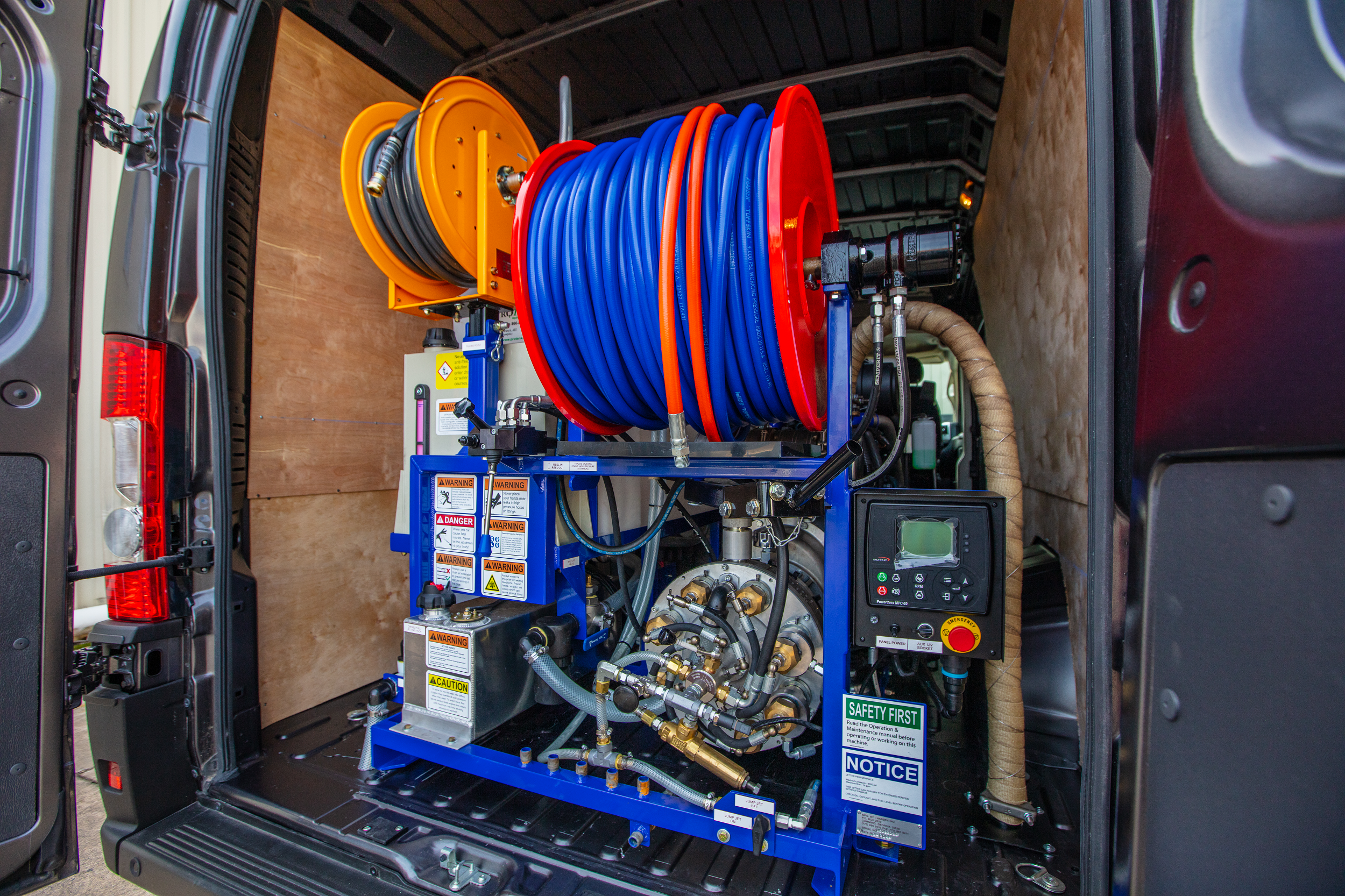

Harben 4018 VPK van pack jetter

Compact frame

Only 80″ long with a lightweight folded steel frame, about 1,700 lb plus water, so there’s room left for your tools.

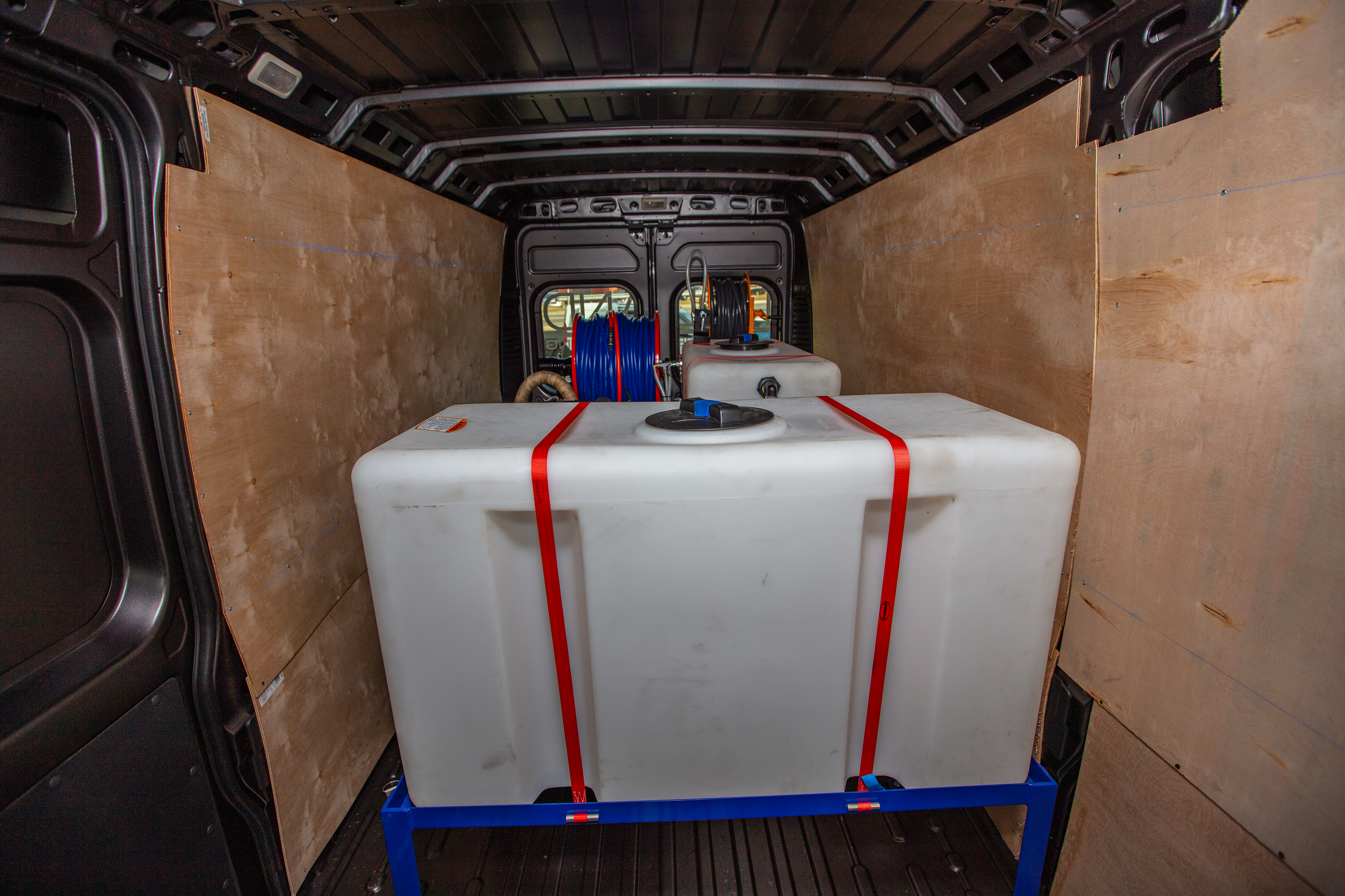

Harben van pack with additional water tank

More water

Comes with a 100 gallon tank. Add more water capacity as an option for longer runs between fills.

Harben Jump Jet control

Jump Jet

Optional Jump Jet pulses the water to pull farther up the line and use less water.

The Harben Difference

A pump that can run dry

Every Harben jetter is built around the Harben P-Type diaphragm pump. Run out of water and it keeps spinning without damage, so one mistake on a cold morning doesn’t take your jetter out of service.

  • DRYRuns dry without damage, the only high pressure pump of its kind
  • 5 YRStandard 5 year warranty on the P-Type pump
  • 150µFiltration to 150 microns, so dirty water won’t stop it
  • 140°Can be set up for hot water up to 140°F
Harben P-Type run-dry pump
Specifications

4018 VPK at a glance

From the Harben 4018 VPK brochure. Ask us about build options.

4,000 PSIPressure
18 GPMFlow
P-TYPERun-dry diaphragm pump
5 YEARPump warranty
KUBOTA T4FDiesel engine
500 FT1/2″ hose on hydraulic reel
100 GALIntegral water tank
80″Frame length
~1,700 LBWeight plus water
UP TO 18″Drain size
12 VAuxiliary outlet
ANTI-FREEZERecirculation system

Options & accessories

  • 7-channel wireless remote
  • Jump Jet pulsation system
  • 1/4″ and 3/8″ lateral kits
  • MKII dump gun (wash-down gun)
  • Foot control valve
  • Additional water tank
  • Nozzles for every application
  • 1/2″ x 10′ leader hose and 2 nozzles included
Video

The 4018 VPK in action

Video preview
Photos

The 4018 VPK

Harben 4018 VPK van pack jetterHarben van pack low viewHarben van pack with additional tankFitting a jetter nozzleHarben wireless remote
Why Buy From Jet Line

Your Harben dealer for the Upper Midwest & Mountain West

Jet Line sells and services Harben in Minnesota, North Dakota, South Dakota, Iowa, Nebraska, Montana, Idaho, Wyoming, Colorado and Utah.

Buy on contractHarben is on the Minnesota State Contract, so cities, counties and schools can skip the bid process.
Demo at your shopWe keep Harben trailer jetters for demos and bring one to your shop or job site from Kensington, MN or Salt Lake City, UT.
Parts & servicePump parts, nozzles and hose in stock, plus setup and operator training when your jetter is delivered.
FinancingFlexible financing with payments deferred up to a year through our lending partner.

More Harben Jetters

FAQ

Common questions

What can the van pack clean?

Drains and sewer lines up to 18″ at 4,000 PSI and 18 GPM, with 500 feet of 1/2″ hose. Lateral kits let you jet smaller lines too.

Will it work in winter?

Yes. The 4018 VPK has an anti-freeze recirculation system, and because it rides inside your van it stays out of the weather.

What does “run dry” mean?

The Harben P-Type diaphragm pump can keep running with no water in it without being damaged. If a tank runs empty or a supply line freezes, you don’t lose the pump. It comes with a standard 5 year pump warranty.

What size van does it need?

The frame is 80″ long and weighs about 1,700 lb plus water. Tell us your van or truck and we’ll confirm the fit and payload before you order.

Can a city buy a Harben on contract?

Yes. Harben is on the Minnesota State Contract, so Minnesota cities, counties and schools can buy without going out for bids. Ask us about cooperative purchasing in the other states we cover.

Put a jetter in your van

Tell us what you clean, how often and how you haul it, and we’ll match you with the right Harben.

Additional Details

DESCRIPTION

The 4018 VPK van pack jetter incorporates the Harben ‘P’ type high pressure diaphragm pump, with its unique 5 year warranty and optional Jump Jet. It can deliver 4,000 psi up to 18 gpm and it is the first and only run dry high pressure pump available anywhere in the world.

The van pack is compact at only 80” long, 60” high and 55” wide and it has an integral 100 gallon water tank with additional water capacity available as an option.  The lightweight folded steel frame keeps the total loaded weight to 2500 lbs allowing you to carry extra work tools when necessary.

The hydraulic hose reel holds 500ft of ½” jetting hose and it has a speed control valve allowing the operator to precisely adjust the rate at which the hose is retracted from the drain. This ensures that 100% of the debris can be safely removed every time. Combined with the Jump jet system, which increases pull distance and reduces water consumption, this van pack delivers serious sewer cleaning performance.

You can choose to customise your 4018 VPK van pack jetter with build options and accessories including a 7-channel wireless remote and a vast range of drain nozzles.

COMES WITH

  • Proven Harben® build quality
  • Standard 5 year pump warranty
  • 4000psi and 18gpm flow
  • Powerful Kubota T4F engine
  • Hydraulic hose reel with feed guide
  • Heavy duty steel frame
  • Cleans drains up to 18″ diameter
  • 12v Auxiliary outlet
  • Low maintenance cost
  • ½” X 10’ Orange leader hose
  • Hydraulic powered hose reel
  • Anti-freeze recirculation system
  • 2 x High efficiency drain nozzles
  • Total Length 80”
  • Width 60”
  • Height 60”
  • Approx. Weight 1700 lbs. plus water

OPTIONAL EXTRAS

  • Wireless remote control
  • Jump jet pulsation system
  • ¼” & 3/8 Lateral kits
  • MKII dump gun (Wash-down gun)
  • Foot control valve
  • Various nozzles for different applications
