Comparison

mc30 & mc30 DUO

Brand:

Brand Logo: minCam

Request Information
mc30
mc30
mc30

mc30

For the most convenient inspection in or around the house.

The mC30 enables an easy inspection of pipes from 2″ up to 8″ diameter. Perfect for the inspection of all pipes for residential areas.

Included in system:

KK29SL 1.1″ self-leveling camera + 100 ft. cable, System control unit with 2 hours battery life, 5.6″ monitor with SD card recording, accessories with centering skids up to 8″.

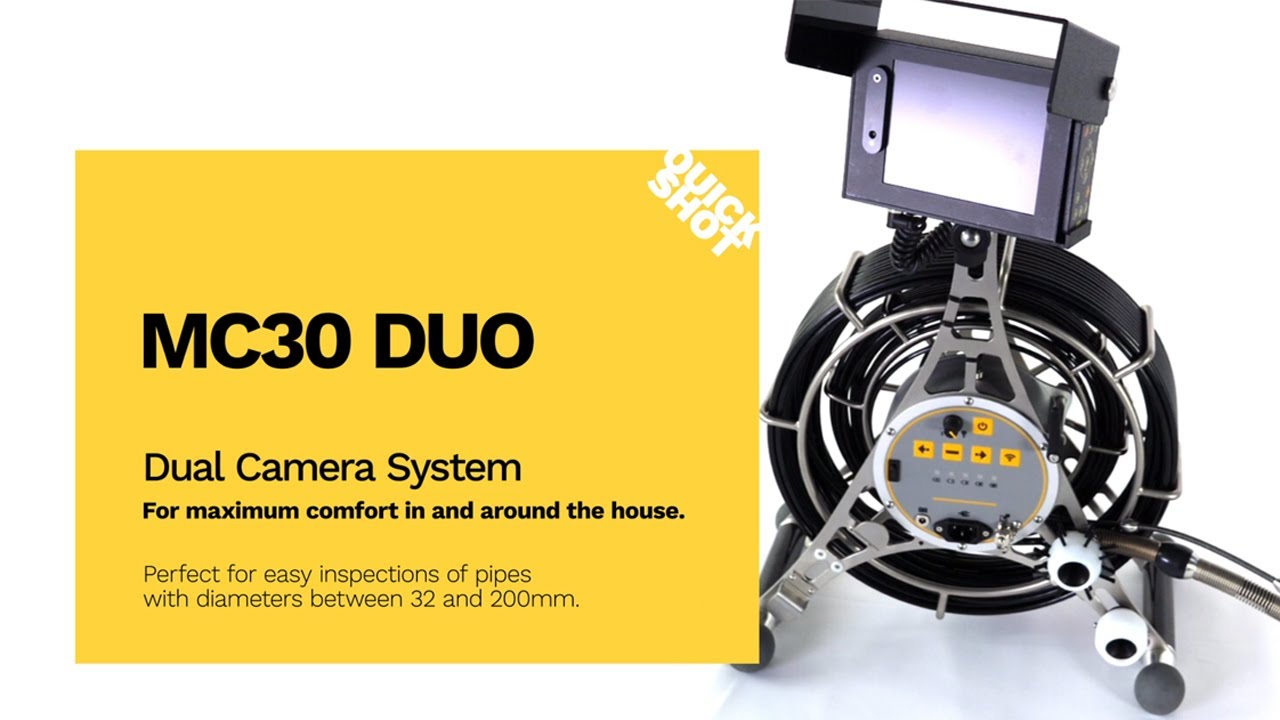

mc30 DUO

Application ranges from 0.6″ up to 8″ ranges

The mc30 Duo dual-reel system comes with two cameras attached to two separate cable reels built into one complete maintenance free CCTV push system. The inner reel features a flexible push-pull cable with a 1/2″ diameter camera for the smallest pipes, and the outer reel features a stiffer push rod and a 1.1″ self-leveling camera for larger diameters. Includes 512 Hz sonde standard, 33 kHz available for special order.

Request Information

Additional Details

MC30 SYSTEM SPECS

SYSTEM SPECS

  • Cable: 100 ft. (30m) of 6.7mm fiberglass push cable (150 ft. / 50m available)
  • Integrated 512 Hz sonde standard (33 kHz special order)
  • Electronic on-screen distance counter
  • Built-in lithium Ion battery for more than 2 hours operation.
  • Power Supply: 100 – 240V AC adapter / 12V DC Car charger adapter
  • Lightweight stainless steel and carbon reel cage.
  • Mechanical reel brake
  • Control Unit: power switch, variable light regulation, distance counter control, sonde control, battery status LEDs, BNC video out
  • Weight: 21 lbs.; Dimensions: 17″ x 19″ x 9″ (L x H x W)
  • Optional: Second built-in battery

The included accessories include centering guide and brushes for KK29SL, SD-to-USB adapter, and a DC car charging cord.

MC30 DUO SYSTEM SPECS

SYSTEM SPECS

  • Outer Cable: 100 ft. (30m) of 6.7mm fiberglass push cable (130 ft. / 40m available)
  • Inner Cable: 50 ft. (15m) of push-pull cable
  • Integrated 512 Hz sonde standard (33 kHz special order)
  • Electronic on-screen distance counter
  • Built-in lithium Ion battery for more than 2 hours operation.
  • Power Supply: 100 – 240V AC adapter / 12V DC Car charger adapter
  • Lightweight stainless steel and carbon reel cage.
  • Mechanical reel brake
  • Control Unit: power switch, variable light regulation, distance counter control, sonde control, battery status LEDs, BNC video out
  • Weight: 21 lbs.; Dimensions: 17″ x 19″ x 9″ (L x H x W)
  • Optional: Second built-in battery

The included accessories include centering guide and brushes for KK29SL, spacer for KK13, SD-to-USB adapter, and a DC car charging cord.

ACCESSORIES

ACCESSORIES

  • 8.4″ Monitor: Upgrade the screen, and optional keyboard
  • Rausch USA Connector: Connects to Rausch USA trucks and system software
  • KK18 Camera: Interchangeable camera to attach to 0.264″ rod
